Mares XR Backplate Stainless Steel 6mm

  • MARES-417507-6MM
$399.00  $359.00
Save: (10%)

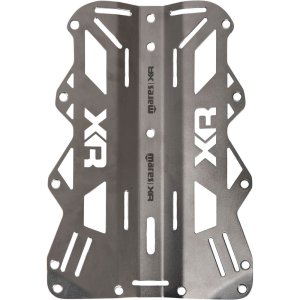

The Mares XR Stainless Steel 6 mm Backplate is part of the new Mares Extended Range (XR) Gear Line. This is a tough skeleton backplate made to be strong and full of features for a solid foundation for your harness and wing system

This backplate is made from 6 mm (0.12") 316 grade stainless steel. This back-plate is strong, durable and provides many options for fixing on accessories — all with the modern XR look! It weighs 4.0 kg so you can take some lead off your belt. The back-plate has 13 laser cut and laser etched webbing slots, with 8 slots specially designed for optimum positioning of the harness webbing. 2 upper and 2 lower slots for nylon cylinder bands so a single cylinder can be strapped directly to the back-plate without the requirement of a special adaptor. Having only 2 slots provides enough lateral cylinder stability without weakening the strength of the spine.

The Mares XR Backplate has a 50 mm (2") wide crotch strap slot and 15 holes for attachment of accessories. The 3 holes at the top of the plate offer a range of height adjustments for buoyancy cells and cylinders. In addition, a corresponding lower centre slot allows for lower band bolts that are misaligned. 4 upper and lower perimeter holes along either side and 4 holes along the bottom allow for the mounting of accessories and side-mount butt plate. The bent lower edges, Mares XR logos and laser cut shaped axis, deliver a highly technical pre-shape for unparalleled versatility. The back-plate has an ultra-rugged backbone and the design was pushed to its limits through intense testing. The Mares XR Stainless Steel Back-Plate provides total modularity and fits all Mares donuts/wings.

Mares XR Stainless Steel 6 mm Backplate Features

  • Bridging the Gap Between Recreational and Technical Diving
  • Made for Serious Divers
  • Pushed to Limits-Thru-Intense Testing
  • Fits All Mares Harnesses and Donuts/Wings
  • Mares XR Stainless Steel Back-Plate:
    • 6 mm (0.24") Grade 316 Stainless Steel
    • Weight: 4.0 kg
    • 13 Laser Cut and Laser Etched Webbing Slots
    • Eight Slots Specially Designed for Optimum Positioning of Harness Webbing
    • 2 Upper, 2 Lower Slots for Nylon Cylinder Bands, Single Cylinder Mount w/o Adaptor
    • Two Slot Design: Provides Lateral Cylinder Stability w/o Weakening Strength of Spine
    • 50 mm (2") Wide Crotch Strap Slot
    • 15 Holes for Accessory Attachment
    • Three Top Holes: Offer Range of Height Adjustments for Buoyancy Cells/Cylinders
    • Lower Centre Slot: Allows for Misaligned Lower Band Bolts
    • 4 Upper, Lower and Bottom Perimeter Holes:
    • Mounting of Accessories
    • Side-Mount Butt Plate
    • Bent Lower Edges
    • Mares XR Logos and Laser Cut Shaped Axis
    • Ultra-Rugged Backbone
    • Highly Technical Pre-Shape — Unparalleled Versatility

Note: This item cannot be delivered outside of Australia.

(05/18 LRB)
