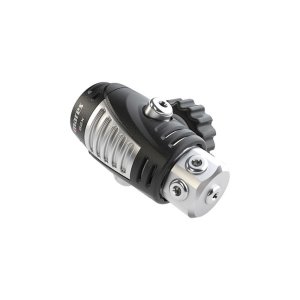

The Mares 82X DIN First Stage Regulator is the new top of the line breathing system, combining the traditional advantages of Mares regulators with latest generation technological innovations in an exclusive design. The 82X marks the new benchmark product for people who want a high-performance regulator. As a result of Mares extensive expertise, they've produced the 82X first stage with a 360 degree swivel turret and a unique design for the HP Ports (OPD) allowing you to orient the high-pressure hose and/or computer transmitter to your preference, regardless of the first stage position. This offers you total control of your equipment configuration.

The 82X is a balanced diaphragm first-stage, which guarantees reliable, consistent, elite performance at any depth or air pressure supply. The pearl finish chrome plated marine brass first stage regulators balanced diaphragm design is inherently environmentally sealed. The diaphragm membrane transmits the pressure changes to the internal mechanism eliminating the need for the surrounding water to enter the intricate mechanism. The benefit of this type of first stage design is that none of the internal parts are exposed to contaminants such as salt, sand, chlorine or pool acids. These environmental contaminants cause corrosion and mineral deposits to form on the internal mechanism deteriorating regulator performance. The first stage also includes the all-new AST anti-flooding system (Auto-Sealing Technology) which safeguards against water intrusion into the first stage, maintaining a dry first stage under all conditions. The flow of gas from the tank activates the AST system automatically without relying on a mechanical solution, ensuring maximum reliability.

The regulator has five 3/8-inch threaded low-pressure (LP) ports with 4 on a rotating turret for excellent hose routing and a fixed fifth on the end of the turret. Two opposing 7/16-inch threaded high-pressure (HP) ports allow mounting of a hose-less air integrated computer transmitter and a backup submersible pressure gauge (SPG).

Achieved EN250 work of breathing requirements at the depth of 200 metres at a breathing rate of 62.5 litres per minute while using a breathing mix of 6.7% oxygen, 83.3% helium and 10% nitrogen. This gas mixture has a density at 200m equivalent to the density of air at 50m. Certified performance at 200 metres. Proven technology at 400 metres.

Mares 82X DIN First Stage Regulator Features

• Top-of-the-Line Breathing System
• Traditional Advantages of Mares Regulators with Latest Generation Technological Innovations
• Exclusive Mares Design
• New Benchmark Product for People Wanting High-Performance Regulator
• 360° Swivel Turret: Total Control of Equipment Configuration
• Balanced Diaphragm Design:
  Inherently Environmentally Sealed to Keep Out Contaminates
  Diaphragm Keeps Delicate Internal Parts from Exposure-to-Contaminants
  No Deterioration from Salt, Sand, Chlorine or Pool Acids
  Requires Less-Maintenance
  Reliable, Consistent, Elite Performance, Any Depth or Air Pressure
• Pearl Finish Chrome-Plated Marine Grade Brass Body
• 5 LP 3/8-inch Threaded Ports, 4-On Turret, 1-Fixed
• 2 HP Ports 7/16-inch Threaded
• A.C.T. Advanced Coating Tri-Material Valve Technology
• Double DFC System
• AST Anti-Flooding System (Auto-Sealing Technology)
• Auto-Sealing Technology: Protects Internal Mechanism if Submerged w/o Dust Cap Securer

Note: This item cannot be delivered outside of Australia.
