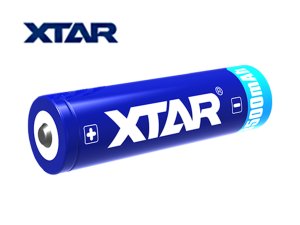

XTAR 18650 Li-Ion Battery Protected Cell 3.6V 3500mAh

The /XTAR NL1835HP 3500mAh Rechargeable 18650 Li-Ion Battery is the recommended battery for use with the Backscatter Mini Flash 1 Underwater Strobe MF-1.

Internal Safety Features

• The microporous barrier protects delicate internal components.
• Pressure relief valve activates in the event of a rapid temperature increase.
• Built-in PTC to inhabit high current surges.
• Innovative anode design with high-temperature resistance.

External Saftey Features

• Equipped at both ends with a nickel-plated stainless steel protector ensuring high impact resistance, good electrical conductivity, and oxidation resistance.
• Tough plastic circuit board protector.
• Coated with a durable metallic film to guard against abrasion.

Purpose-Designed High-Performance Protected Circuit

• Automatically protects against overcharge, over-discharge and short-circuiting
• Utilises a high-quality battery protection IC from Seiko Instruments Japan
• Utilizes two high-power MOS FETs in the current regulation module for better efficiency and superior output

Low Cost and Environmentally Friendly

• An NL1835HP battery can be recharged over 500 times, the equivalent of 500 pairs of CR123 batteries.

NiteCore NL1835HP 3500mAh Rechargeable 18650 Li-Ion Battery Specifications

• Type: NL1835HP
• Size: 18560
• Capacity: 3500mAh
• Voltage: 3.6V
• Output: 8A
• Weight: 49.9 g (1.76 oz)
• Length: 69.2 mm (2.72-inch)
• Diameter: 18.3 mm (0.72-inch)
• Warranty: 12 Month Warranty from the date of purchase

Precautions:

• Never expose a 18650 battery to water or fire.
• When charging or using batteries ensure the positive and negative ends correspond with the positive (+) and negative (-) symbols.
• To extend battery life it is recommended that an NL1835HP is charged every three (3) months when unused for long periods.
• Keep out of the reach of children.

(11/22 MDG)
