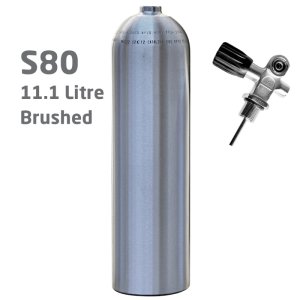

Catalina S80 Aluminium Cylinder - 11.1 litre (80 cuft) - 207 bar

CY10393 / CY10372 09/22
Catalina Cylinders
Starting at: $648.00 Sale:$596.16


The Catalina S80 (11.1 litre, 80 cubic foot), 207 bar, Aluminium Cylinder with DIN/K Valve is made from high-grade aluminium and constructed especially to meet Australian safety standards. Negatively buoyant when empty. Rugged enough for rental gear or sport diving.

The 80 cubic foot aluminium cylinder has been the staple cylinder in the diving industry for many years. This cylinder is used by more divers, dive operators and retail dive stores than any other type of cylinder available.

The standard valve supplied with this cylinder is one of the highest flow cylinder valves available today and is also a convertible valve. Whether you dive Yoke or DIN regulators this valve will work for both. Valve has an easily removed 200 bar DIN insert to convert the valve for use with DIN regulators. Valve has a heavy-duty design with a smooth operating mechanism and multi-ported burst disc plug for added safety.

Aluminium cylinders unlike steel cylinders don't rust, they oxidise. The oxidisation of aluminium forms a protective coat that hinders the continuation of corrosion making aluminium cylinders less likely to be condemned due to excessive corrosion.

Because of it's highly regarded buoyancy characteristics, the Catalina S80 aluminium cylinder is a popular choice as stage/pony tank(s) by technical divers going really deep, or on very long dives. For longer, deeper dives they often use these cylinders to carry a Nitrox mix (e.g. EAN50, 50% oxygen) to accelerate their decompression on accent. The Catalina S80 is a great cylinder for doing this.

Catalina 80 Cubic Foot Aluminium Cylinder Features

  • Industry Standard Cylinder
  • Cylinder is Oxygen cleaned
  • Aluminium Alloy Design
  • Won't Rust Like Steel Cylinders
  • Water Capacity: 11.1 litres (80 cubic feet)
  • Working Pressure: 207 bar (3000 psi)
  • Neck Thread Size: 3/4"-14 NPSM

We supply a DIN to Yoke convertible, cross-flow valve as standard. The valves are made by Ocean Design. They are strong and reliable being made from really top quality materials. The valve regulator connection incorporates a threaded insert, which means it can equally be used for both INT bracket (Yoke) or DIN connection.

Note: If you require your cylinder unvalved, instead of a convertible DIN/Yoke valve, please specify when you order.

Valve Oxygen Cleaning:
The Catalina aluminium cylinders are supplied Oxygen (O2) clean, suitable for use with up to 100% oxygen. However, if you are planning to use the cylinder with Enriched Air Nitrox (Nitrox) mixes up to 100% oxygen, it's essential for the safety of the cylinder user and the person filling the cylinder that the valve be oxygen cleaned and prepared with special o-rings, seats, and grease designed for exposure to pure oxygen. The cylinder should then be banded with the familiar yellow and green Nitrox band/wrap/sticker, and an Oxygen Clean 'In Test' inspection sticker applied.

Catalina S80 Scuba Cylinder Specifications

  • Working Pressure: 207 bar (20.7 MPA)
  • Test Pressure: 345 bar (34.5 MPA)
  • Material: High strength aluminium alloy 6061-T6
  • Catalina S80 SP12 TC-3ALM204
  • Water Capacity: 11.1 litres
  • Tare: 14.3 kg
  • Neck Thread: 3/4 inch NPSM
  Dimensions Water Capacity Buoyancy*
Water Cap. Diam. Len. Empty
cu in lbs litre Full
500 psi
80 cf
11.1 litre
7.25 in
184.2 mm
25.8 in
654 mm
31.6 lbs
14.3 kg
679 24.5 11.1 -1.7 +2.7 +4.1

* Buoyancy is calculated with a standard K valve in seawater

Colour: Brushed Aluminium.

All scuba tanks for delivery are sold EMPTY due to restrictions in place on the transportation of high-pressure cylinders. If you are picking up your order at the dive shop, The Scuba Doctor will be happy to give you a FREE air fill.

Regulation and Inspection: Cylinders comply with Australian Standards and are stamped with the Australian Standards Authority Number. All Catalina seamless aluminium alloy compressed gas cylinders imported into Australia are manufactured in accordance with US Department Of Transport (DOT) 3AL and Transport of Canada (TC) 3ALM requirements. Every cylinder is inspected and tested by a DOT and TC authorised independent inspection agency.

International shipping: Not available.
Shipping within Australia: Email or call for prices.
Our standard freight fees do not apply.
All cylinders are shipped unfilled with the valve off.

Note: We will only ship cylinders to locations in Australia.
