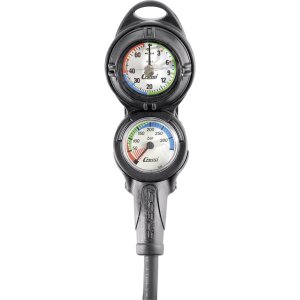

Cressi Console PD2 Mini SPG with Depth Gauge

KC764550
Cressi
$359.00 $330.28
8% off!

Qty:

The Cressi Console PD2 combines a Mini Submersible Pressure Gauge (SPG) with a Depth Gauge in one compact, in-line console. The textured console boot is easy to handle, even while wearing gloves, and can be rigged with a clip or bungee and secured to the diver's BC for a streamlined profile in the water.

Cressi Mini SPG

The Cressi mini-manometer submersible pressure gauge (SPG) with luminescent dial reads from 0 to 350 bar. For at a glance monitoring of air pressure the instruments face is divided into three different coloured zones: the area from 50 bar and below is highlighted in Red, with a solid bar and Red stripes. If the SPG is used on Deeper Dives, the Red scale extends and fades to 100 bar, this provides for Added Reserve Air indication required at greater depths. From 50 to approximately 200 bar is Green, and from 150 bar to end of scale is Blue.

The SPG's front glass lens is made to act as a pressure relief valve. In the event of a sudden increase in pressure inside the instrument, the glass rises slightly, allowing the excess pressure to escape.

The instrument is housed in a small, modern shaped boot, made from polycarbonate and DESMOPAN, (a Thermoplastic Polyurethane) two materials that guarantee protection from shocks and scratches. At the same time, is very lightweight. The pressure gauge housing is durable chrome plated brass. The gauge boot has an attachment point for a clip or lanyard. The pressure gauge is equipped with a 7/16" threaded high pressure hose and is made in Italy.

Cressi Depth Gauge

The Cressi Depth Gauge has a maximum depth of 70 metres. Like the pressure gauge the depth gauge face is colour coded for ease of readability. The depth gauge is coded in safety green for 0 to 20 metres with orange dots at 3 metres and 6 metres for safety and decompression stops. At the depth of 20 metres to 40 metres the colour is blue, and from 40 metres to 70 metres the colour coding is caution orange. The depth gauge has a maximum depth indicator that stops on the maximum depth reached during the dive. This function is extremely handy for logging of dive information.

The Cressi Console PD2 Pressure Gauge and Depth Gauge is covered by a 24 month limited warranty.

Cressi Console PD2 Mini Pressure Gauge with Depth Gauge Features

  • Small Compact Console
  • High Quality Instruments
  • Large Circular Easy-to-Read Scales
  • Small, Modern Shaped Console Boot
  • Pressure Gauge: Cressi Mini-Manometer:
    • 0 to 350 bar Readout
    • Chrome Plated Brass Case
    • Unique Glass Lens Pressure Relief Valve
    • Luminescent Color Coded Dial
    • Colour Zones:
    • 0 to 50 bar Highlighted in Red, Solid-Bar and Red Stripes
    • Deeper Dives Reserve: Red-Scale Extends and Fades to 100 bar
    • Safe Air Zone: 50 bar to approximately 200 bar Green and 150 bar to Full Scale is Blue
  • Cressi Depth Gauge:
    • 0 to 70 Metre Gauge Scale
    • Maximum Depth Indicator, Extremely Handy for Logging Dive Information
    • 0 to 12 Metres of Depth: 3 Metre Increments, Widely Spaced for Ease-of-Reading
    • Face Divided into 3-Different Coloured Zones:
    • Green Up to 20 Metres
    • Light-Blue from 20 to 40 Metres
    • Red from 40 to 70 Metres
  • 7/16" Threaded High Pressure Hose
  • Boot Material: Durable Polycarbonate and DESMOPAN, (Thermoplastic Polyurethane)
  • Protection from Shocks, Scratches and Very Lightweight
  • Eyelets for Fastening Instrument to BCD or Harness with Clip or Lanyard
  • Italian Made
  • 2 Year Limited Warranty

(11/16 LRB)
